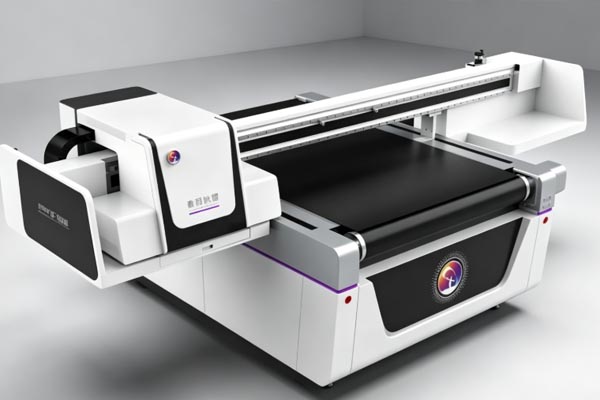

The printhead height of a UV flatbed conveyor printer directly affects image clarity, ink droplet placement, printhead safety, and equipment operating stability. If the height is too low, even a slight warping of the material may cause it to collide with the printhead. If the height is too high, ink droplets may spread easily, affecting details, registration, and edge quality. During actual setup, adjustments should be made according to the material thickness, surface flatness, print mode, and equipment structure. Mastering the correct method can reduce problems such as printhead collisions, ink mist, and ghosting, making the printing process more stable.
Conditions to Confirm Before Setting the Printhead Height
The printhead height is not a fixed value. Before operation, the material and equipment conditions should be checked to avoid making adjustments based solely on experience.
Measure the Actual Material Thickness
Before measuring, make sure that the material is flat and consistent in size.
- Use a caliper to measure the actual thickness;
- Check whether the edges are warped, burred, or deformed;
- When multiple layers of material are stacked, use the highest point as the reference;
- Check the surface flatness of materials such as glass, acrylic, and metal sheets;
- Confirm that soft or thin materials will not bulge during printing.
When the material thickness varies, set the printhead height according to the actual highest point. If there are significant differences within the same batch of materials, it is recommended to measure them in batches and record the corresponding parameters.
Check the Platform and Printhead Condition
After measuring the material, check whether the printing platform and printhead are in normal condition.
- Clean dust, ink stains, and debris from the platform;
- Confirm that the platform is level;
- Check whether there is dried or accumulated ink on the printhead;
- Confirm that the height sensor, limit devices, and lifting mechanism are functioning properly;
- After powering on, confirm that the equipment has completed homing and initialization;
- Secure the material properly to prevent movement during printing.
An uneven platform or improperly secured material may cause inconsistent print clarity and, in severe cases, lead to a printhead collision.
Methods for Setting the Printhead Height of a UV Flatbed Conveyor Printer
The operating interface may vary between different machines, but the basic principle is to maintain a suitable and stable distance between the printhead and the material.
Adjust the Height Through the Equipment Interface
If the equipment is equipped with an automatic height measurement function, this method should be used whenever possible.
- Place the material to be printed;
- Start the automatic height measurement function;
- Read the highest point of the material;
- Make fine adjustments according to the surface condition;
- Save the height parameters;
- Confirm the distance through low-speed dry running or test printing.
After automatic height measurement, check whether the material is warped. If necessary, add a safety margin, but do not raise the printhead excessively.
Manual Fine Adjustment
When the material surface is irregular or manual calibration is required, manual fine adjustment can be used. Move the printhead to the highest area of the material and gradually adjust the height while observing the distance between the printhead and the material. Confirm the result through test lines, text, and color blocks, and record the appropriate height parameters. The height should be reconfirmed whenever the material is changed, and old data should not be used directly. Each adjustment should be small. The test pattern should include fine lines, small text, and color blocks to help identify ink droplet spreading, blurred edges, or an excessively low printhead.
Key Points for Controlling Printhead Height for Different Materials
Different surface characteristics require different printhead distances. When setting the height, do not consider thickness alone; also take surface reflectivity, flatness, and ink absorption into account.
Key Points for Hard and Flat Materials
For hard materials, confirm that the surface is flat and the positioning is stable.
- Maintain a stable distance when printing on glass, metal sheets, acrylic, and other materials;
- The flatter the surface, the easier it is to control the printhead height;
- Confirm the positioning method before printing on transparent materials;
- For glossy materials, pay attention to ink droplet spreading and visual errors caused by reflections;
- If the material edges are warped, correct them first or avoid the affected printing area;
- Maintain a stable printhead height when printing white ink and color ink in layers.
Before printing, also clean dust, protective film residue, and local protrusions from the surface, and confirm the location of the highest point of the material.
Key Points for Lightweight, Thin, or Uneven Materials
For lightweight, thin, or uneven materials, secure them properly first to ensure stable operation, and then adjust the height.
- Prevent materials such as cardboard and thin plastic sheets from bulging during printing;
- Use pressure bars, vacuum suction, or fixtures for securing the material;
- When the surface texture is pronounced, use the highest point as the reference;
- If the material edges are uneven, avoid the abnormal areas;
- If shaking occurs during conveying, check the feeding stability first;
- After setting the height, it is recommended to perform a continuous material-feeding test.
For these materials, not only can the thickness vary, but the material may also rise and fall during operation. If the material cannot remain flat, adjusting the printhead height alone cannot completely solve the problem.
Signs of Abnormal Printhead Height and Solutions
When the printhead height is not set properly, the finished print usually shows noticeable signs. Identifying these problems promptly can help reduce material waste and printhead damage.
Common Problems When the Printhead Is Too Low
When the distance between the printhead and the material is too small, problems such as ink buildup, ink dragging, scratches, and printhead collisions may occur. If the material is warped, it may also trigger an alarm, contaminate the printhead, and increase the risk of nozzle dropout. In such cases, pause printing immediately and check the material height, platform flatness, and height sensor. After confirming the cause, appropriately increase the safety distance and perform another test.
Common Problems When the Printhead Is Too High
When the distance between the printhead and the material is too large, print clarity and registration accuracy may be affected:
- The edges of small text become blurred;
- Fine lines develop fuzzy edges;
- Color graphics become misregistered;
- Ink droplets are more easily affected by airflow;
- The image develops a grainy appearance;
- White ink coverage becomes weaker.
When making adjustments, do not lower the printhead too much at once. Adjust it gradually according to the test pattern while balancing print clarity and safety distance.
The printhead height is not a fixed parameter. It should be adjusted according to the material thickness, surface flatness, securing condition, and actual printing performance. For frequently used materials, the corresponding height data can be organized for convenient future use. If the material batch changes, the securing method is adjusted, or the image clarity and ink droplet condition change, the printhead height should also be recalibrated promptly. Springyprinter provides equipment and technical support for industrial UV printing applications, helping users establish a more stable printhead height management process.
